Description

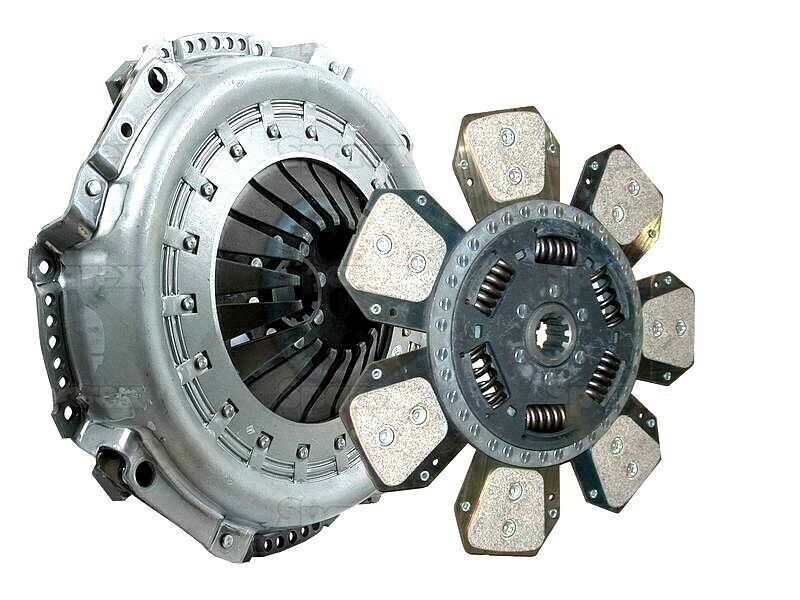

CLUTCH KIT.
Contains –
1 x Single Clutch Cover – 8 Bolt. 310mm. Diaphragm spring without release ring. Fixed PTO hub 1″ 5/8 and 10 spline.
1 x Clutch Main Plate – 310mm. 10 Spline. Spline OD 1″ 1/8. Torsion Sprung with compensating springs. 7 Pads.
1 x Clutch Release Bearing – 102mm x 60mm x 20.5mm.
1 x Pilot Bearing – 47mm x 20mm x 14mm.
Compatible with Case IH CX70, CX80, CX90 and CX100 tractors.
McCormick CX70, CX80, CX90 and CX100 tractors.
Replaces original part no. – 341723A1
All parts listed are not manufactured by the original equipment manufacturer, unless otherwise stated.
Original part numbers are for reference purposes only and are not intended to suggest they are made by the original equipment manufacturer.
