Description

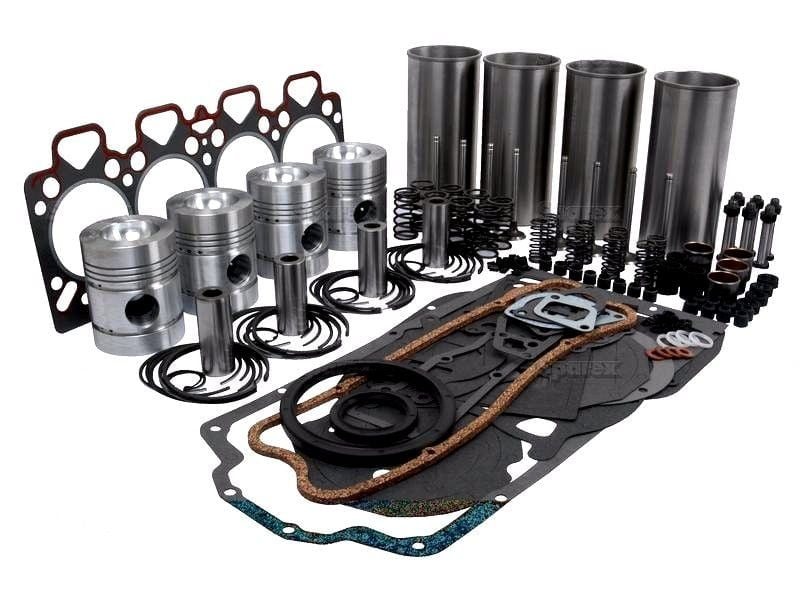

ENGINE OVERHAUL KIT.
Consists of: 4 x Pistons.
Piston length = 108.28mm. Chamber depth = 19.95mm. Chamber 60.85mm.
Pin 38.03mm. Compression height = 70.24mm. To fit bore 96.52mm. No. of rings = 3. Al-Fin Ring
4 x Sets of rings.
4 x Finished liners.
Bore diameter: 98.500 mm Flange diameter: 107.390 mm Overall height: 226.360 mm
Flange width: 3.810 mm Outside diameter: 104.240 mm
1 x Head gasket set.
1 x Bottom gasket set.
1 x Front crank seal.
1 x Rear crank seal.
4 x Small end bushes.
1 x Valve train kit.
Fits – Massey Ferguson 390T and 398 tractor with Perkins AT4.236 engines.
Please message us with your engine serial number and piston and liner measurements if you are unsure if this kit is correct for your tractors engine.
All parts listed are not manufactured by the original equipment manufacturer, unless otherwise stated.
Original part numbers are for reference purposes only and are not intended to suggest they are made by the original equipment manufacturer.
